推力圓柱滾子軸承

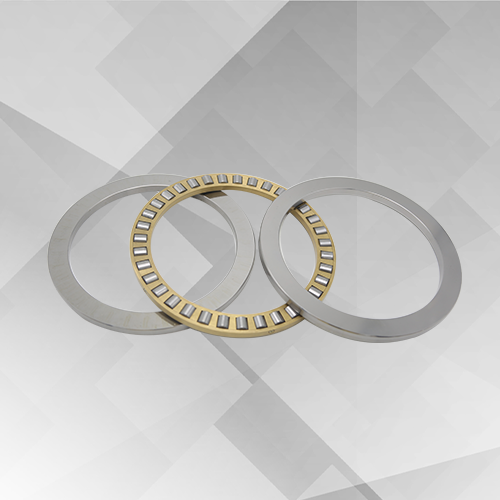

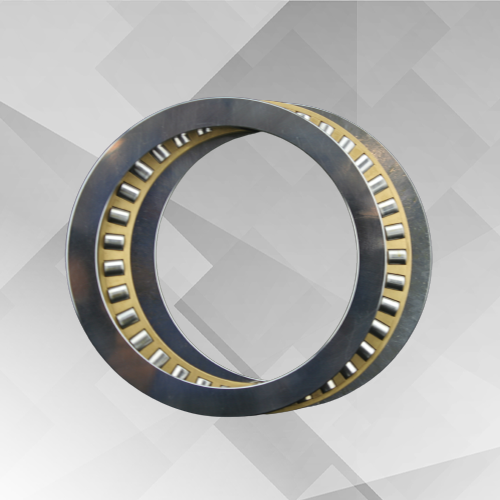

- 推力圓柱滾子軸承由推力圓柱滾子和保持架組件、底圈和軸圈組成。軸承具有很小的軸向截面高度、高承載能力、高剛度并能承受一個方向的軸向力。
bearing@hyzcgroup.com
18837917076
- 產品詳情
推力圓柱滾子軸承由推力圓柱滾子和保持架組件、底圈和軸圈組成。軸承具有很小的軸向截面高度、高承載能力、高剛度并能承受一個方向的軸向力。

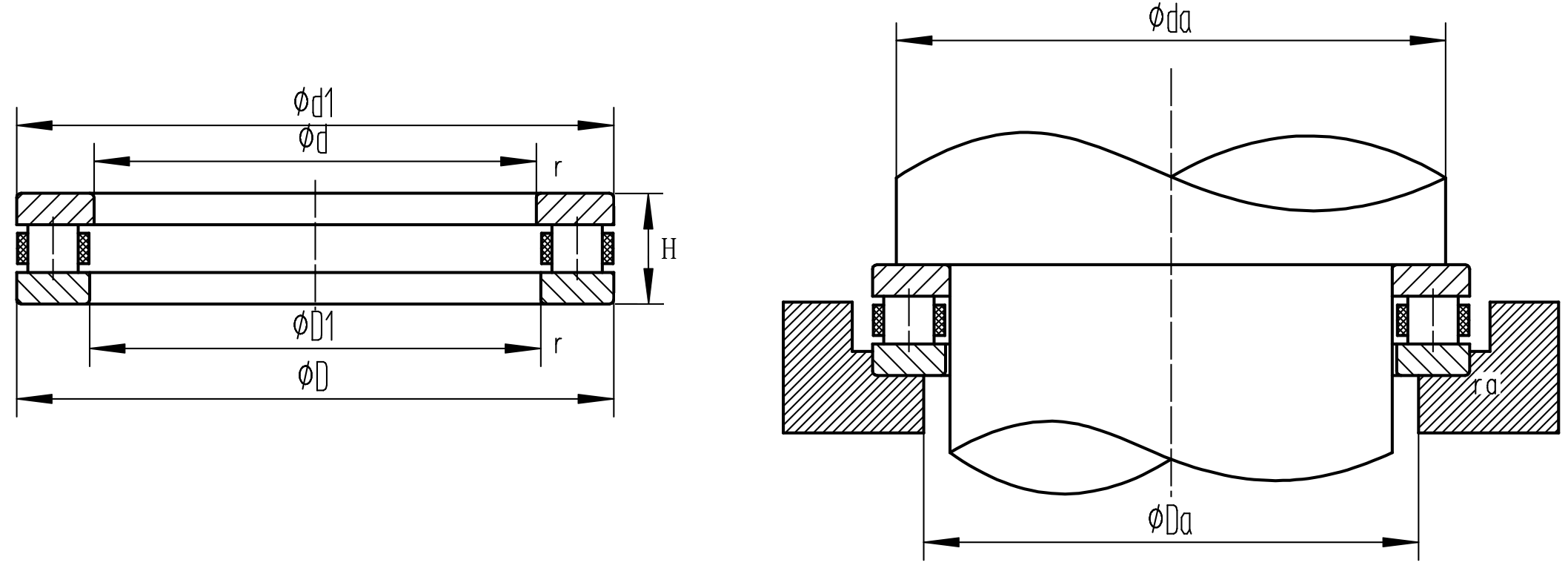

| 軸承型號 | 外形尺寸 | 額定載荷 | 極限轉速 | 其它外形尺寸 | 安裝尺寸 | 重量 | ||||||||||
| mm | (KN) | (r/min) | mm | mm | (kg) | |||||||||||
| d | D | H | Ca | Coa | 脂潤滑 | 油潤滑 | d1 | D1 | Dw | B | rmin | da | Da | ramax | ||
| 81110 | 50 | 70 | 14 | 42.5 | 146 | 1600 | 2200 | 70 | 52 | 6 | 4 | 0.6 | 68 | 52 | 0.6 | 0.14 |
| 81210 | 50 | 78 | 22 | 91.5 | 300 | 1200 | 1700 | 78 | 52 | 9 | 6.5 | 1 | 75 | 53 | 1 | 0.36 |
| 81111 | 55 | 78 | 16 | 69.5 | 285 | 1400 | 1900 | 78 | 57 | 6 | 5 | 0.6 | 77 | 57 | 0.6 | 0.22 |
| 81211 | 55 | 90 | 25 | 116 | 365 | 950 | 1400 | 90 | 57 | 11 | 7 | 1 | 85 | 59 | 1 | 0.57 |
| 81112 | 60 | 85 | 17 | 80 | 300 | 1300 | 1800 | 85 | 62 | 7.5 | 4.75 | 1 | 2 | 62 | 1 | 0.27 |
| 81212 | 60 | 95 | 26 | 137 | 465 | 950 | 1400 | 95 | 62 | 11 | 7.5 | 1 | 91 | 64 | 1 | 0.64 |
| 81113 | 65 | 90 | 18 | 83 | 320 | 1200 | 1700 | 90 | 67 | 7.5 | 5.25 | 1 | 87 | 67 | 1 | 0.31 |
| 81213 | 65 | 100 | 27 | 140 | 490 | 900 | 1300 | 100 | 67 | 11 | 8 | 1 | 96 | 69 | 1 | 0.72 |
| 81114 | 70 | 95 | 18 | 86.5 | 345 | 1200 | 1700 | 95 | 72 | 7.5 | 5.25 | 1 | 92 | 72 | 1 | 0.33 |
| 81214 | 70 | 105 | 27 | 146 | 530 | 900 | 1300 | 105 | 72 | 11 | 8 | 1 | 102 | 74 | 1 | 0.77 |
| 81115 | 75 | 100 | 19 | 75 | 290 | 1100 | 1600 | 100 | 77 | 7.5 | 5.75 | 1 | 97 | 78 | 1 | 0.38 |
| 81215 | 75 | 110 | 27 | 125 | 440 | 850 | 1200 | 110 | 77 | 11 | 8 | 1 | 106 | 79 | 1 | 0.81 |
| 81116 | 80 | 105 | 19 | 76.5 | 300 | 1000 | 1500 | 105 | 82 | 7.5 | 5.75 | 1 | 102 | 83 | 1 | 0.4 |
| 81216 | 80 | 115 | 28 | 160 | 610 | 858 | 1200 | 115 | 82 | 11 | 8.5 | 1 | 112 | 84 | 1 | 0.9 |
| 81117 | 85 | 110 | 19 | 76.5 | 310 | 1000 | 1500 | 110 | 87 | 7.5 | 5.75 | 1 | 108 | 87 | 1 | 0.42 |
| 81217 | 85 | 125 | 31 | 153 | 550 | 800 | 1100 | 125 | 88 | 12 | 9.5 | 1 | 119 | 90 | 1 | 1.3 |
| 81118 | 90 | 120 | 22 | 104 | 415 | 900 | 1300 | 120 | 92 | 9 | 6.5 | 1 | 117 | 93 | 1 | 0.64 |
| 81218 | 90 | 135 | 35 | 232 | 865 | 750 | 1000 | 135 | 93 | 14 | 10.5 | 1.1 | 129 | 95 | 1.1 | 1.75 |
| 81120 | 100 | 135 | 25 | 146 | 585 | 850 | 1200 | 135 | 102 | 11 | 7 | 1 | 131 | 104 | 1 | 1 |
| 81220 | 100 | 150 | 38 | 224 | 830 | 670 | 900 | 150 | 103 | 15 | 11.5 | 1.1 | 142 | 107 | 1.1 | 2.2 |
| 81122 | 110 | 145 | 25 | 153 | 630 | 800 | 1100 | 145 | 112 | 11 | 7 | 1 | 141 | 114 | 1 | 1.1 |
| 81222 | 110 | 160 | 38 | 240 | 915 | 630 | 850 | 160 | 113 | 15 | 11.5 | 1.1 | 152 | 117 | 1.1 | 2.45 |
| 81124 | 120 | 155 | 25 | 160 | 680 | 800 | 1100 | 155 | 122 | 11 | 7 | 1 | 151 | 124 | 1 | 1.15 |
| 81224 | 120 | 170 | 39 | 245 | 965 | 600 | 800 | 170 | 123 | 15 | 12 | 1.1 | 162 | 127 | 1.1 | 2.7 |
| 81126 | 130 | 170 | 30 | 183 | 780 | 700 | 950 | 170 | 132 | 12 | 9 | 1 | 165 | 135 | 1 | 1.7 |
| 81226 | 130 | 190 | 45 | 335 | 1250 | 530 | 700 | 187 | 133 | 19 | 13 | 1.5 | 181 | 137 | 1.5 | 4.2 |
| 81128 | 140 | 180 | 31 | 193 | 850 | 670 | 900 | 178 | 142 | 12 | 9.5 | 1 | 175 | 145 | 1 | 1.95 |
| 81228 | 140 | 200 | 46 | 360 | 1400 | 530 | 700 | 197 | 143 | 19 | 13.5 | 1.5 | 191 | 147 | 1.5 | 4.55 |
| 81130 | 150 | 190 | 31 | 200 | 900 | 630 | 850 | 188 | 152 | 12 | 9.5 | 1 | 185 | 155 | 1 | 2.05 |
| 81230 | 150 | 215 | 50 | 465 | 1900 | 480 | 630 | 212 | 153 | 21 | 14.5 | 1.5 | 211 | 158 | 1.5 | 5.9 |
| 81132 | 160 | 200 | 31 | 204 | 965 | 630 | 850 | 198 | 162 | 12 | 9.5 | 1 | 195 | 165 | 1 | 2.2 |
| 81232 | 160 | 225 | 51 | 480 | 2000 | 450 | 600 | 222 | 163 | 21 | 15 | 1.5 | 220 | 168 | 1.5 | 6.2 |
| 81134 | 170 | 215 | 34 | 260 | 1180 | 600 | 800 | 213 | 172 | 14 | 10 | 1.1 | 209 | 176 | 1 | 2.95 |
| 81234 | 170 | 240 | 55 | 540 | 2280 | 430 | 560 | 237 | 173 | 22 | 16.5 | 1.5 | 235 | 180 | 1.5 | 7.7 |
| 81136 | 180 | 225 | 34 | 270 | 1270 | 560 | 750 | 222 | 183 | 14 | 10 | 1.1 | 219 | 185 | 1 | 3.05 |
| 81236 | 180 | 250 | 56 | 550 | 2400 | 430 | 560 | 247 | 183 | 22 | 17 | 1.5 | 245 | 190 | 1.5 | 8.25 |
| 81138 | 190 | 240 | 37 | 310 | 1460 | 530 | 700 | 237 | 193 | 15 | 11 | 1.1 | 233 | 197 | 1 | 3.85 |
| 81238 | 190 | 270 | 62 | 695 | 2900 | 380 | 500 | 267 | 194 | 26 | 18 | 2 | 265 | 200 | 2 | 10.5 |
| 81140 | 200 | 250 | 37 | 310 | 1500 | 530 | 700 | 247 | 203 | 15 | 11 | 1.1 | 243 | 206 | 1 | 4 |
| 81240 | 200 | 280 | 62 | 720 | 3100 | 380 | 500 | 277 | 204 | 26 | 18 | 2 | 275 | 210 | 2 | 12 |
| 81144 | 220 | 270 | 37 | 335 | 1700 | 500 | 670 | 267 | 223 | 15 | 11 | 1.1 | 263 | 226 | 1 | 4.5 |
| 81244 | 220 | 300 | 63 | 750 | 3350 | 360 | 480 | 297 | 224 | 26 | 18.5 | 2 | 296 | 230 | 2 | 13 |
| 81148 | 240 | 300 | 45 | 475 | 2450 | 430 | 560 | 297 | 243 | 18 | 13.5 | 1.5 | 296 | 248 | 1.5 | 7.25 |
| 81248 | 240 | 340 | 78 | 1100 | 4900 | 300 | 400 | 335 | 244 | 32 | 23 | 2.1 | 335 | 261 | 2 | 22 |
| 81152 | 260 | 320 | 45 | 490 | 2600 | 400 | 530 | 317 | 263 | 18 | 13.5 | 1.5 | 316 | 268 | 1.5 | 7.85 |
| 81252 | 260 | 360 | 79 | 1140 | 5300 | 280 | 380 | 355 | 264 | 32 | 23.5 | 2.1 | 353 | 280 | 2 | 24 |
| 81156 | 280 | 350 | 53 | 680 | 3550 | 360 | 480 | 347 | 283 | 22 | 15.5 | 1.5 | 346 | 288 | 1.5 | 10.5 |
| 81256 | 280 | 380 | 80 | 1160 | 5500 | 260 | 360 | 375 | 284 | 32 | 24 | 2.1 | 373 | 300 | 2 | 24 |
| 81160 | 300 | 380 | 62 | 850 | 4400 | 320 | 430 | 376 | 304 | 25 | 18.5 | 2 | 373 | 315 | 2 | 16.5 |
| 81260 | 300 | 420 | 95 | 1530 | 7200 | 220 | 320 | 415 | 304 | 38 | 28.5 | 3 | 413 | 328 | 2.5 | 40.5 |
| 81164 | 320 | 400 | 63 | 880 | 4650 | 300 | 400 | 396 | 324 | 25 | 19 | 2 | 394 | 334 | 2 | 18 |
| 81264 | 320 | 440 | 95 | 1560 | 7500 | 200 | 300 | 435 | 325 | 38 | 28.5 | 3 | 434 | 348 | 2.5 | 42.5 |
| 81168 | 340 | 420 | 64 | 900 | 4900 | 280 | 380 | 416 | 344 | 25 | 19.5 | 2 | 414 | 354 | 2 | 19.5 |
| 81268 | 340 | 460 | 96 | 1630 | 8000 | 200 | 300 | 455 | 345 | 38 | 29 | 3 | 452 | 367 | 2.5 | 47 |
| 81172 | 360 | 440 | 65 | 915 | 5000 | 280 | 380 | 436 | 364 | 25 | 20 | 2 | 434 | 374 | 2 | 19.5 |
| 81272 | 360 | 500 | 110 | 2160 | 10400 | 180 | 260 | 495 | 365 | 45 | 32.5 | 4 | 492 | 393 | 3 | 65.5 |
| 81176 | 380 | 460 | 65 | 930 | 5300 | 260 | 360 | 456 | 384 | 25 | 20 | 2 | 453 | 393 | 2 | 22 |
| 81276 | 380 | 520 | 112 | 2200 | 10800 | 180 | 260 | 515 | 385 | 45 | 33.5 | 4 | 511 | 413 | 3 | 70 |
| 81180 | 400 | 480 | 65 | 965 | 5600 | 260 | 360 | 476 | 404 | 25 | 20 | 2 | 473 | 413 | 2 | 23 |
| 81280 | 400 | 540 | 112 | 2240 | 11200 | 170 | 240 | 535 | 405 | 45 | 33.5 | 4 | 531 | 433 | 3 | 73 |
| 81184 | 420 | 500 | 65 | 980 | 5850 | 240 | 340 | 495 | 424 | 25 | 20 | 2 | 493 | 433 | 2 | 24 |
| 81284 | 420 | 580 | 130 | 2850 | 14000 | 160 | 220 | 575 | 425 | 52 | 39 | 5 | 571 | 459 | 4 | 95.5 |
| 81188 | 440 | 540 | 80 | 1430 | 8000 | 200 | 300 | 535 | 444 | 32 | 24 | 2.1 | 533 | 459 | 2 | 39.5 |
| 81288 | 440 | 600 | 130 | 2900 | 14600 | 160 | 220 | 595 | 445 | 52 | 39 | 5 | 591 | 479 | 4 | 110 |
| 81192 | 460 | 560 | 80 | 1460 | 8500 | 200 | 300 | 555 | 464 | 32 | 24 | 2.1 | 553 | 479 | 2 | 41 |
| 81292 | 460 | 620 | 130 | 3000 | 15300 | 150 | 200 | 615 | 465 | 52 | 39 | 5 | 611 | 499 | 4 | 118 |
| 81196 | 480 | 580 | 80 | 1460 | 8650 | 190 | 280 | 575 | 484 | 32 | 24 | 2.1 | 573 | 500 | 2 | 43 |
| 81296 | 480 | 650 | 135 | 3350 | 17000 | 150 | 200 | 645 | 485 | 56 | 39.5 | 5 | 641 | 520 | 4 | 128 |
| 811/500 | 500 | 600 | 80 | 1530 | 9150 | 190 | 280 | 595 | 505 | 32 | 24 | 2.1 | 592 | 519 | 2 | 44 |
| 812/500 | 500 | 670 | 135 | 3400 | 17600 | 140 | 190 | 665 | 505 | 56 | 39.5 | 5 | 661 | 540 | 4 | 133 |
| 811/530 | 530 | 640 | 85 | 1700 | 10400 | 180 | 260 | 635 | 535 | 34 | 25.5 | 3 | 632 | 554 | 2.5 | 55.5 |
| 812/530 | 530 | 710 | 140 | 3800 | 20000 | 130 | 180 | 705 | 535 | 60 | 40 | 5 | 701 | 572 | 4 | 154 |
| 811/560 | 560 | 670 | 85 | 1760 | 10800 | 180 | 260 | 665 | 565 | 34 | 25.5 | 3 | 662 | 584 | 2.5 | 58 |
| 812/560 | 560 | 750 | 150 | 3900 | 20800 | 120 | 170 | 745 | 565 | 60 | 45 | 5 | 741 | 611 | 4 | 187 |
| 811/600 | 600 | 710 | 85 | 1760 | 11200 | 170 | 240 | 705 | 605 | 34 | 25.5 | 3 | 702 | 624 | 2.5 | 62 |
| 812/600 | 600 | 800 | 160 | 4400 | 24000 | 110 | 160 | 795 | 605 | 64 | 48 | 5 | 789 | 651 | 4 | 240 |
| 811/630 | 630 | 750 | 95 | 2160 | 13700 | 160 | 220 | 746 | 634 | 38 | 28.5 | 3 | 732 | 650 | 2.5 | 80 |
| 812/630 | 630 | 850 | 175 | 4800 | 26000 | 90 | 140 | 842 | 638 | - | - | 6 | 808 | 672 | 5 | 295 |
| 811/670 | 670 | 800 | 105 | 2550 | 16300 | 140 | 200 | 795 | 675 | - | - | 4 | 777 | 693 | 3 | 110 |
| 812/670 | 670 | 900 | 180 | 5700 | 30500 | 90 | 140 | 892 | 678 | - | - | 6 | 860 | 710 | 5 | 335 |
| 811/800 | 800 | 950 | 120 | 3450 | 22000 | 90 | 140 | 945 | 805 | - | - | 3 | 923 | 827 | 3 | 165 |
| 811/900 | 900 | 1060 | 130 | 4000 | 27000 | 70 | 120 | 1054 | 906 | - | - | 4 | 1032 | 928 | 4 | 210 |
| 811/1060 | 1060 | 1250 | 150 | 5300 | 36500 | 55 | 100 | 1244 | 1066 | - | - | 4 | 1215 | 1095 | 4 | 225 |
| 811/1120 | 1120 | 1320 | 160 | 6000 | 41500 | 50 | 90 | 1314 | 1126 | - | - | 4 | 1284 | 1156 | 4 | 410 |
